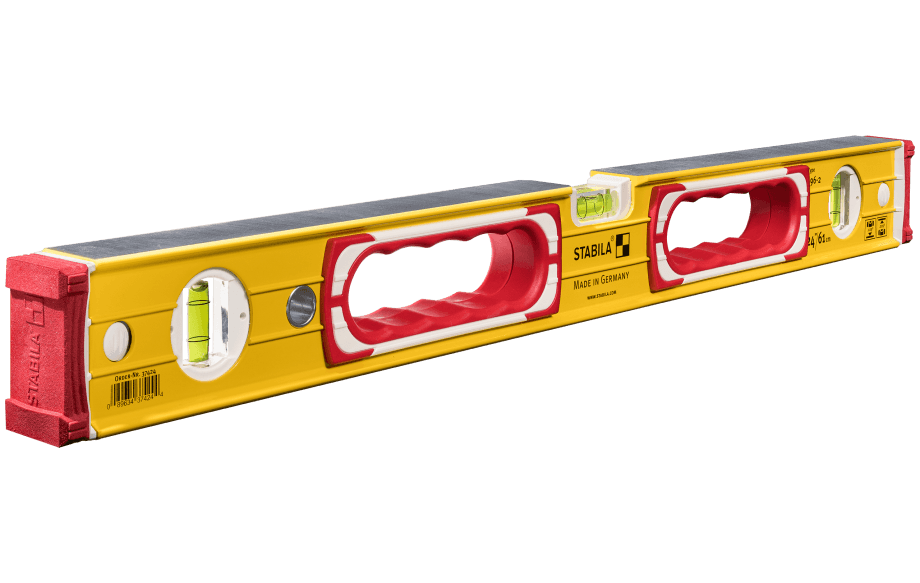

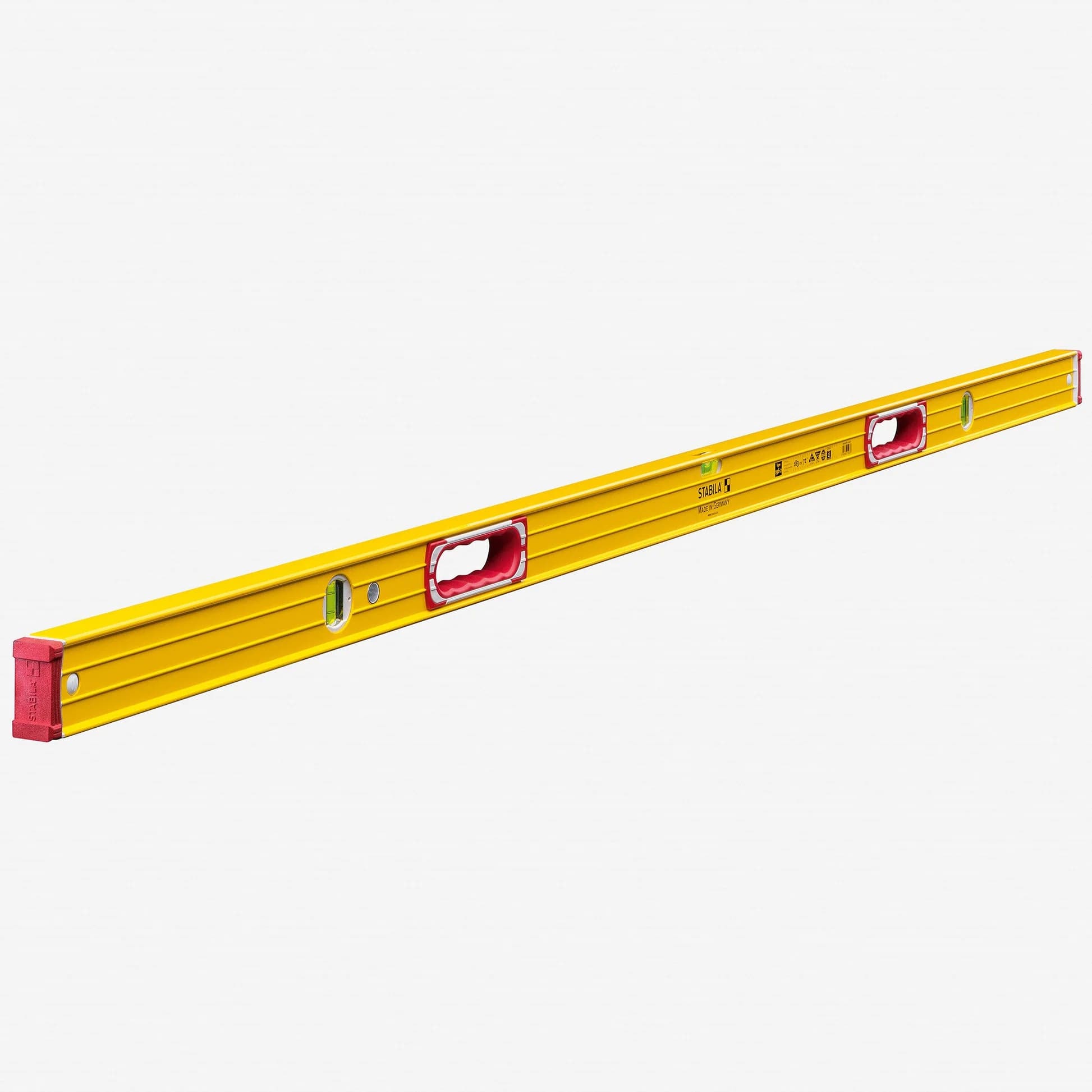

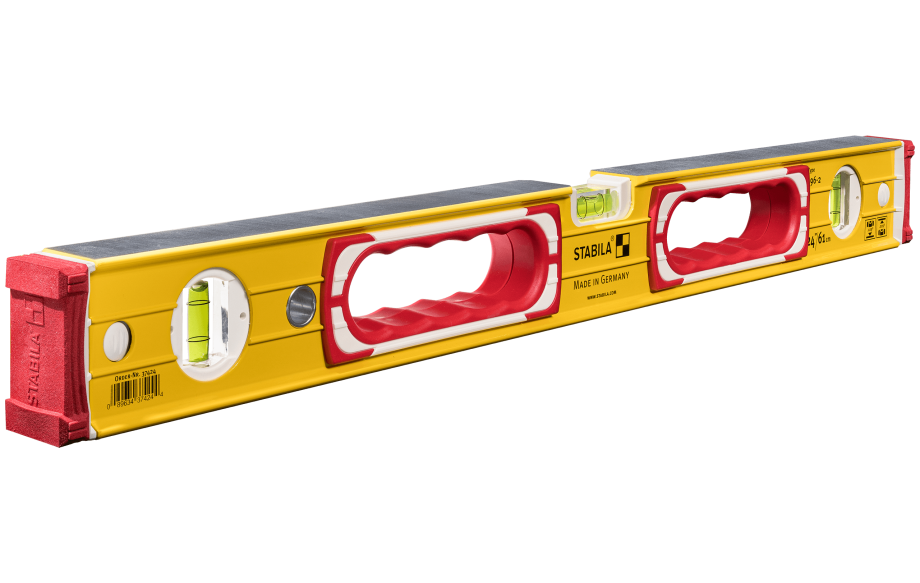

STABILA Type 196 heavy-duty box level

Name: STABILA Type 196 heavy-duty box level
Brand: STABILA

upgradeEU available

Vials are cast into the ribbed aluminium frame with non-shrink epoxy, eliminating the adjustable-carrier failure point that plagues cheaper levels. Higher price buys frame/vial engineering, not brand prestige.

$235 typical

Check availability

EDITION 01RESEARCHED 2026-08-133 SOURCESREFRESH DUE 2027-02

SUBSTANCE SCORES

substance8.4/ 10

design8.0/ 10

value8.3/ 10

WHY THE PRICE IS JUSTIFIED

The price is principally frame and vial-installation engineering: high-strength ribbed aluminium plus epoxy-fixed vials. The published normal and reverse specification is the same 0.5 mm/m, a meaningful advantage for reversal checks.

MATERIALS

ProfileRib-reinforced aluminium

High rigidity is the defence against a permanently inaccurate, bent level.

Vial systemAcrylic-glass vials cast with non-shrink epoxy

Immovably couples vials and frame rather than relying on an adjustable carrier.

End capsTwo-component impact-absorbing polymer

Protects ends while remaining removable for flush work.

CRITERIA

9/10

Verified Accuracy

Published ±0.5 mm/m in both normal and reverse positions.

10/10

Calibration Stability

Vials are cast into the frame with non-shrink epoxy; no re-adjustment stated.

10/10

Frame Rigidity

Ultra-rigid aluminium profile with reinforcing ribs.

9/10

Vial Readability

Precision-ground acrylic-glass vial contours; less magnified than SOLA.

9/10

Impact Resistance

Two-component end caps and heavy-duty profile.

9/10

Handling Efficiency

Long versions add rubberized hand grips and machined measuring faces.

IDEAL FOR

·daily trade use
·masonry
·window and door installation
·long straightedge duties

NOT FOR

·weight-sensitive carry
·budget-only purchases
·precision machinist levelling

DESIGN & ERGONOMICS

A sober, excellent working object: deep ribbing and rubberized grips on longer versions give a secure carry, while removable caps permit corner/flush marking. It is heavier and more expensive than value options.

LONGEVITY

Vials are guaranteed against leak, fog and breakage; end caps are removable. A bent extrusion is not repairable, so inspect/perform a reversal test after impacts.
