STABILA

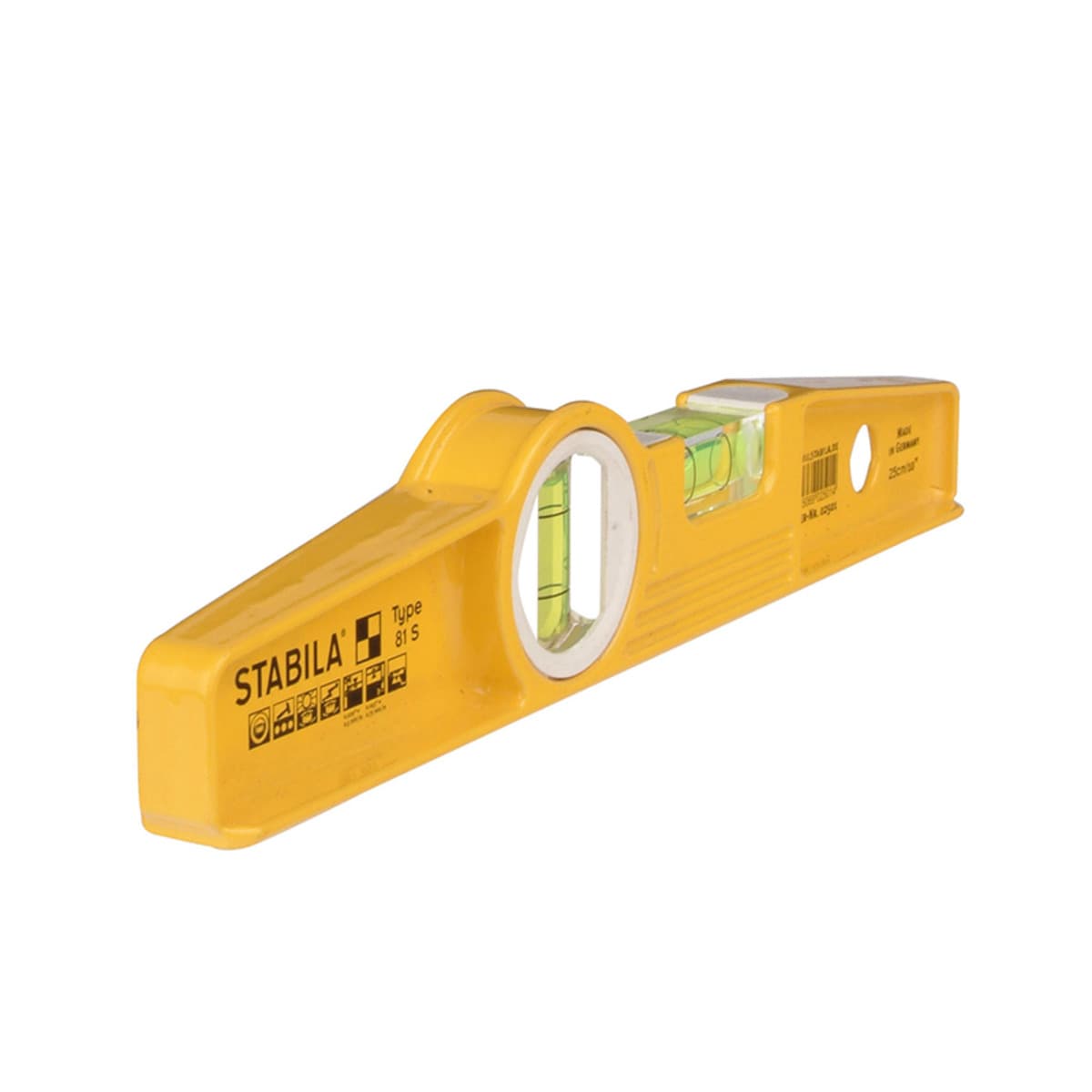

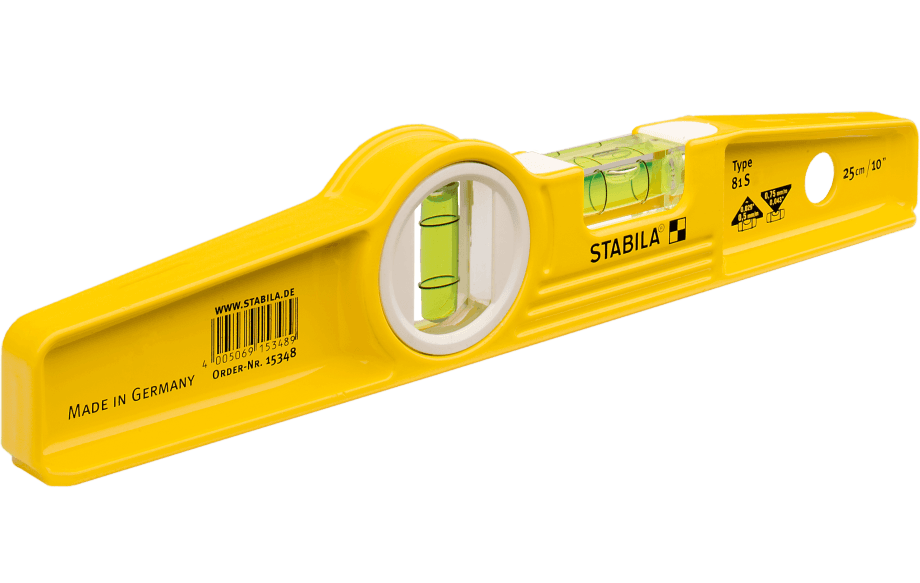

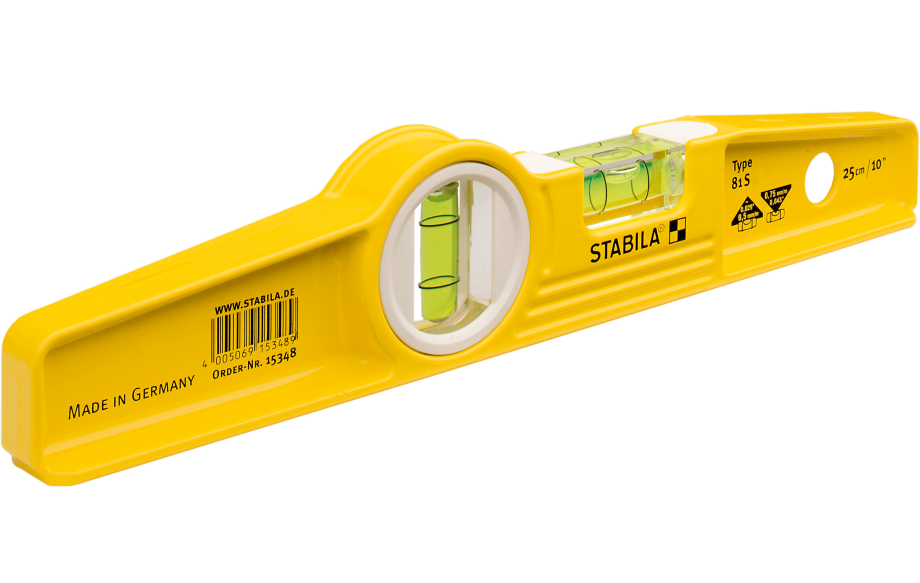

STABILA Type 81 S die-cast torpedo level

Name: STABILA Type 81 S die-cast torpedo level
Brand: STABILA

EU available

The modest premium over plastic torpedoes buys die-cast rigidity, a milled face and permanently accurate vials. It is a construction tool, not a logo (Die-cast aluminium, Milled aluminium) — $38

$38 typical

Check availability

EDITION 01RESEARCHED 2026-08-133 SOURCESREFRESH DUE 2027-02

SUBSTANCE SCORES

substance8.1/ 10

design5.5/ 10

value7.2/ 10

WHY THE PRICE IS JUSTIFIED

The modest premium over plastic torpedoes buys die-cast rigidity, a milled face and permanently accurate vials. It is a construction tool, not a logo purchase.

MATERIALS

BodyDie-cast aluminium

A stiff, impact-tolerant one-piece small-level body.

Measuring faceMilled aluminium

Provides a precise contact reference.

FinishElectrostatic powder coating

Resists grime and makes mortar/adhesive easier to wipe away.

CRITERIA

9/10

Verified Accuracy

±0.5 mm/m normal and ±0.75 mm/m reverse specification.

9/10

Calibration Stability

Lifetime vial assurance; rigid die-cast body.

10/10

Frame Rigidity

Die-cast aluminium is exceptionally stout at torpedo length.

8/10

Vial Readability

Clear conventional vials but no magnification.

9/10

Impact Resistance

Robust casting and powder-coated exterior.

9/10

Handling Efficiency

Slim trapezoidal grip designed for cramped locations.

IDEAL FOR

·cabinet and trim work
·tight plumbing/electrical spaces
·users wanting a rugged pocket level

NOT FOR

·steelwork requiring magnets
·long runs
·45-degree layout

DESIGN & ERGONOMICS

The narrow trapezoidal casting is unusually good in the hand and slips into restricted spaces. It lacks magnetic convenience and a 45° vial, which is a deliberate simplicity trade-off.

LONGEVITY

Lifetime vial protection is a strong durability signal; the cast body has no vulnerable end-cap joint. It is not user-serviceable, so check reversal accuracy after an unusually severe impact.
